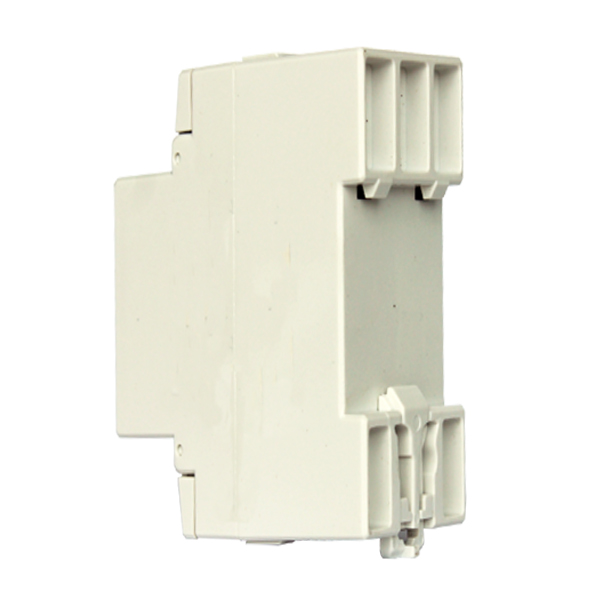

DDS986 single phase two wire din rail digital energy meter is a small rail mounted watt hour meter,this meter with 2 modules and very easy to install. It is with a light weight and small installation area, and widely used for houses and homes.
1. Two modules and mounted in the rail 35mm2.
2. Measure kWh unit.also can make a multi display function.
3. Can improve and add reset button.
4. Can add the backlight.
Type | 1 Phase 2Wire |
Connection | Bottom and upside connected |
Voltage | AC220V,230V,240V |
Basic current(Ib) | 5A,10A,15A,20A,30A |
Max current(Imax) | 60A |
Starting current | 0.04%Ib |
Frequency | 50Hz,60Hz |
Accuracy | Class 1.0 |
Operating temperature | ~25℃~70℃ |
Display | Digital type |
Size | 36mm(width)*66mm(depth)*78mm(height) |
weight | 0.2kg |
Package | Inner box and carton box |
Customized support(OEM) | Yes |
If you have any other requirements, please contact us.
| 1. Where is your factory? |
We are located in Yuhuan,Zhejiang,China,317609. |
| 2. Can you print my logo on the product? |
Yes,we can print your logo and brand name on the product. |
3.What is your package for this meter? |
We put one meter in a paper box and 100pcs in a carton box. |
4. What is your payment method? |
We accept bank transfer,LC,Western Union, Paypal, Master card,... |
