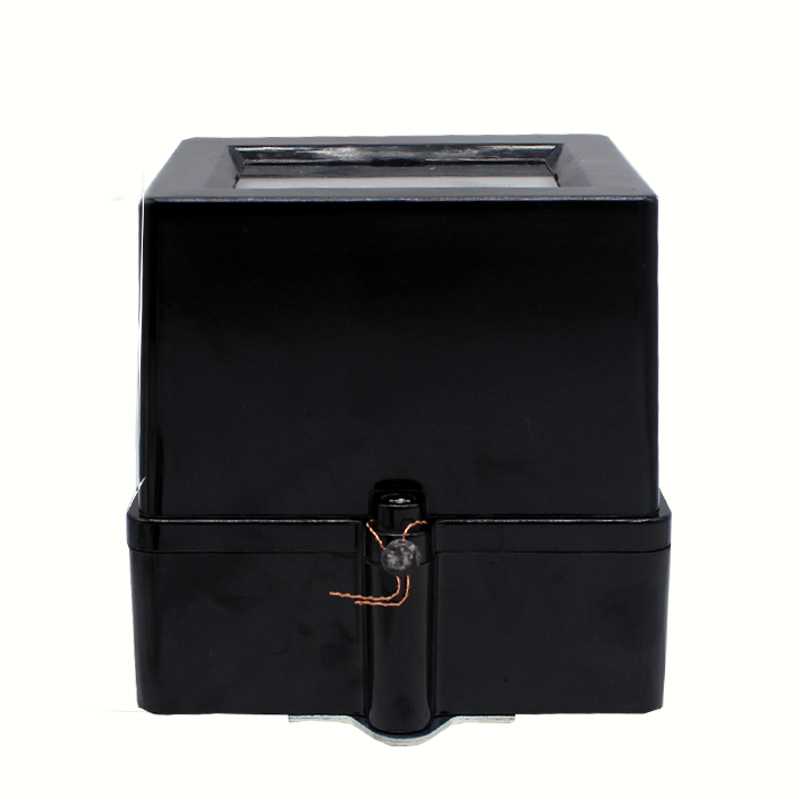

Single Phase Two Wire Traditional Electromechanical Energy Meter

Design and Construction

(1) Main Components

Current and Voltage Coils: The meter features current and voltage coils as its core components. The current coil is connected in series with the two-wire electrical circuit, allowing the load current to pass through it. It is designed to sense the magnitude of the current flowing in the circuit. The voltage coil, connected in parallel across the two wires, is exposed to the full line voltage. These coils work together to generate the necessary magnetic fields for the meter's operation.

Rotating Aluminum Disc: A pivotal part of the meter is the rotating aluminum disc. When current flows through the current coil and voltage is applied across the voltage coil, the resulting magnetic fields induce eddy currents in the aluminum disc. These eddy currents interact with the magnetic fields, causing the disc to rotate. The speed of the disc's rotation is directly proportional to the electrical power being consumed in the circuit at any given moment.

Braking Magnet: To regulate the rotation speed of the aluminum disc and ensure accurate measurement, a braking magnet is incorporated. The braking magnet exerts a magnetic force on the rotating disc, opposing its motion. By adjusting the position of the braking magnet relative to the disc, the speed can be precisely controlled, ensuring that the disc rotates at a rate that accurately reflects the power consumption.

Register Mechanism: The register mechanism consists of a series of gears and pointers. As the aluminum disc rotates, it drives these gears, which in turn move the pointers on the meter's dial. The dials are calibrated to display the cumulative electrical energy consumption in kilowatt-hours (kWh), enabling users to easily monitor their electricity usage over time.

Advantages

(1) Simplicity and Familiarity

One of the significant advantages of this traditional electromechanical meter is its simplicity. Its mechanical design is straightforward and easy to understand, even for those with limited technical knowledge. Homeowners and small business owners can quickly glance at the dials on the meter face to get a basic understanding of their electricity usage. This simplicity also makes it a familiar device in many regions where it has been used for a long time.

(2) Reliability in Stable Environments

In relatively stable electrical environments, such as in many residential areas with consistent electrical loads, the electromechanical meter has proven to be reliable. It does not rely on complex electronic components that may be prone to failure due to electrical surges, software glitches, or other issues. Its mechanical nature means it can often continue to function accurately over long periods with minimal maintenance, provided it is properly installed and not subject to excessive wear or damage.

(3) Low Initial Cost

Compared to some advanced digital meters with additional features, the traditional electromechanical energy meter is generally less expensive to manufacture and install. This makes it an attractive option for areas with budget constraints or for applications where the level of accuracy required does not justify the higher cost of digital alternatives.

Applications

Despite its limitations, the Single Phase Two Wire Traditional Electromechanical Energy Meter is still used in some regions, particularly in rural areas or older residential and small commercial buildings where the electrical infrastructure has not been upgraded. It is suitable for applications where a basic measurement of electricity consumption is sufficient and where the cost and simplicity of the meter are prioritized over advanced features. However, as the demand for more accurate, efficient, and intelligent energy management grows, its use is gradually being phased out in favor of digital metering solutions.
