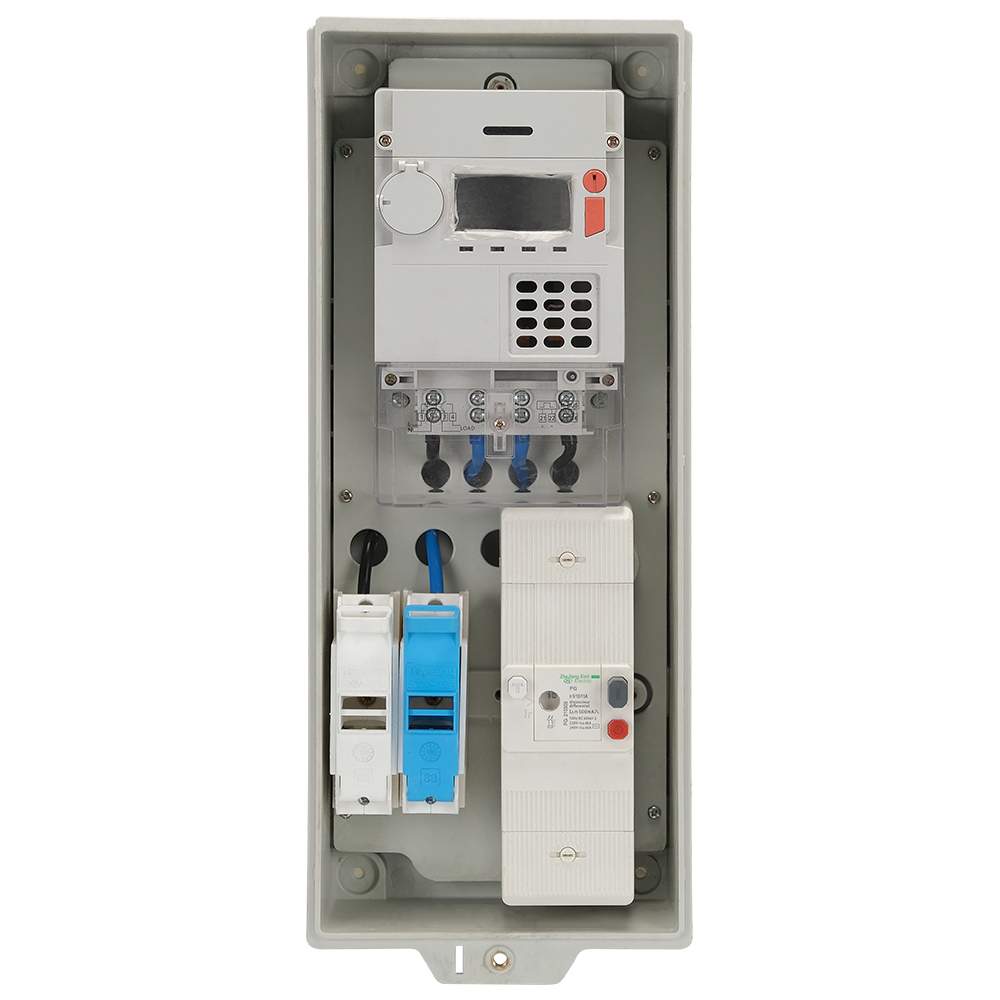

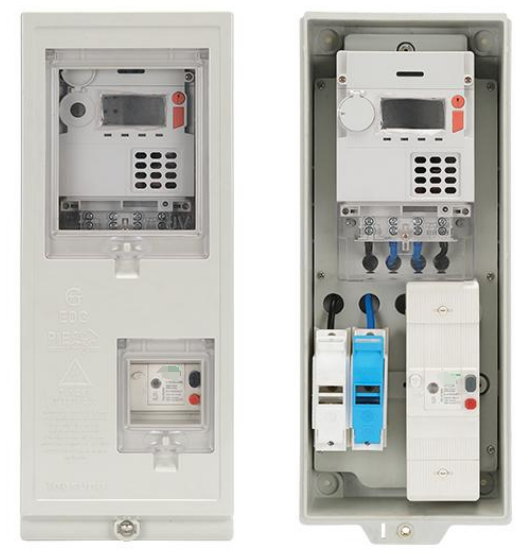

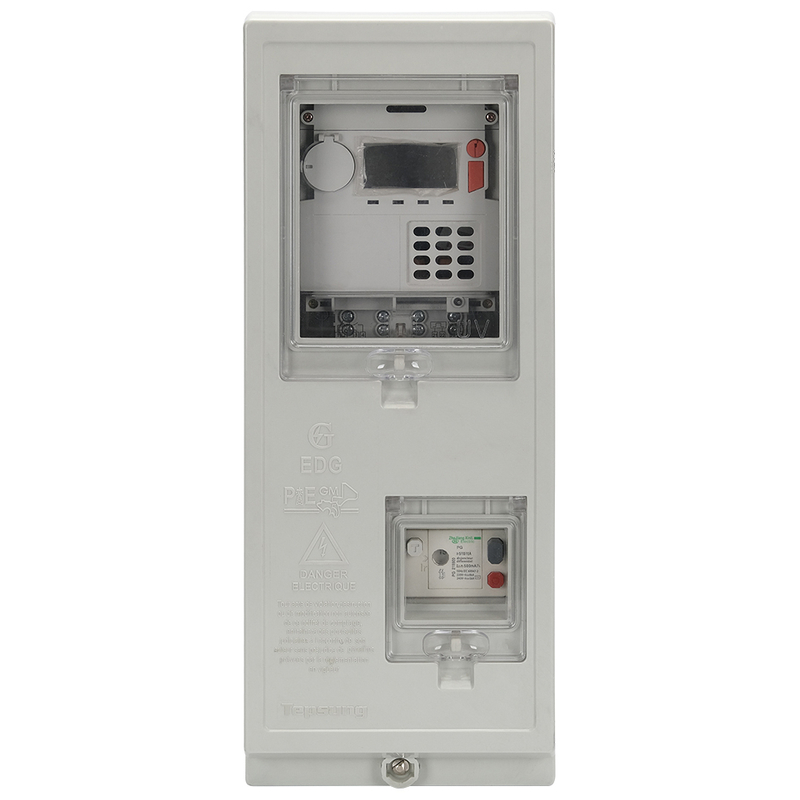

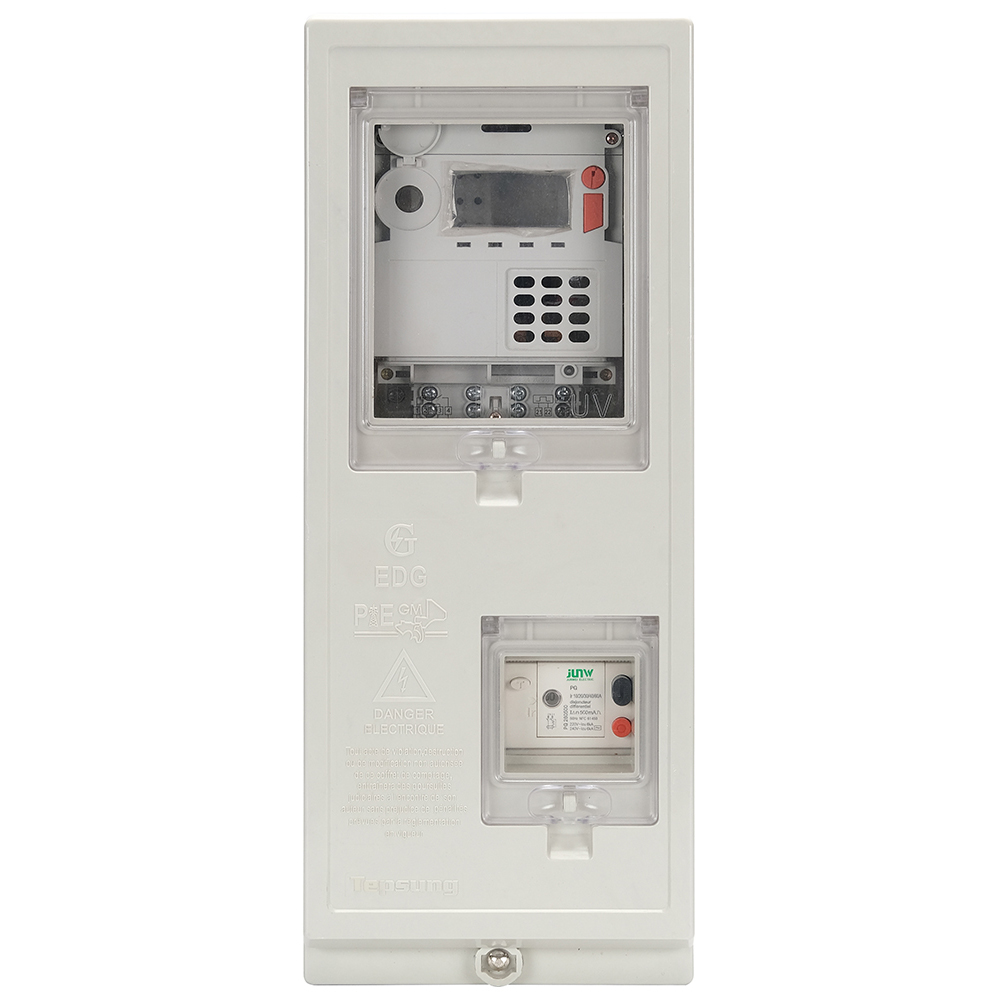

The X-2301 Prepaid Meter Box is a high-performance, secure enclosure designed for single-phase prepaid and smart meters. Constructed from SMC fiberglass, it offers exceptional fire resistance (up to 960℃) and IK10 impact protection, ensuring durability and safety in demanding environments. With an IP54 waterproof rating, the box is resistant to dust and water, making it ideal for outdoor installations. The design includes a large transparent window for easy meter reading and operation, and a smaller window for breaker operations, allowing convenient access. This meter box can accommodate a single-phase prepaid meter or smart meter, along with a breaker and fuse, providing a compact, all-in-one solution. It supports both wall-mounted and pole-mounted installations and can operate within a temperature range of -30°C to 80°C, ensuring reliable performance in diverse conditions. The X-2301 is perfect for residential and commercial use, offering both security and efficiency for energy management.
1. 24/7 Power Monitoring & Control
Track energy usage in real-time via Wi-Fi and control appliances remotely through a smartphone app, optimizing efficiency and minimizing waste.
2. Energy Efficiency & Cost Reduction
Generate detailed reports with precise energy data and identify high-consumption devices, providing personalized tips to lower electricity costs.
3. Robust & Reliable Construction
Crafted from fire-resistant SMC fiberglass and equipped with IP54 waterproofing and IK10 impact protection, ensuring durability in harsh conditions.
4. Versatile Installation & Smart Integration
Eas installation with wall/pole mounting options, compatible with the Tuya Smart ecosystem for seamless energy management across various environments.
| Parameter | Value |
|---|---|
| Model | X-2301 |
| Dimension | Depth: 133mm, Width: 200mm, Height: 510mm |
| Weight | 2.7kg |
| Material of Top Cover | Reinforced fiberglass - SMC |
| Protection Degree | IP54 |
| Anti-UV | Yes |
| Flame Resistance | Yes |
| Anti-Tamper Protection | Seal or Lock |
| Temperature Range | -30°C to 80°C |

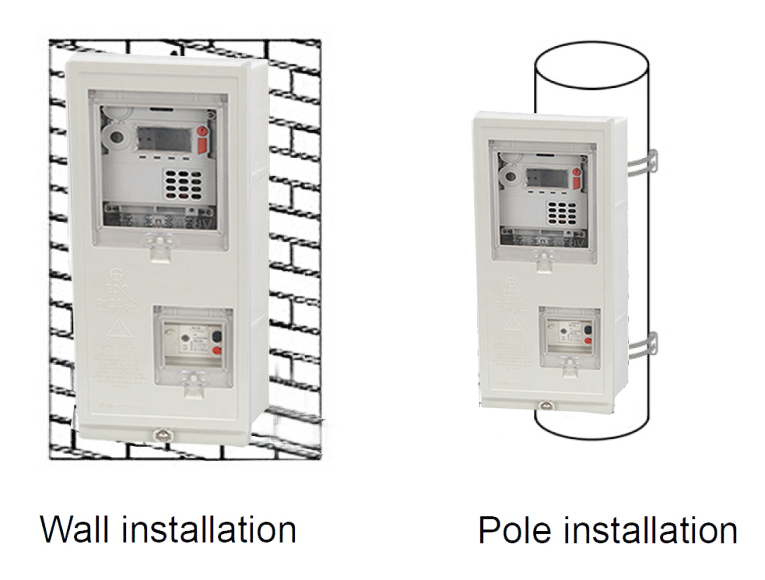

| Mounting Methods | Pole Mounted or Wall Mounted |
The IP54 IK10 SMC Fiberglass Single Phase Electric Prepaid Meter Box is ideal for both residential and commercial applications. Its durable, waterproof design makes it perfect for outdoor installations in harsh environments. Whether wall-mounted or pole-mounted, it is well-suited for energy monitoring systems, offering protection for prepaid and smart meters.
 |  |
Description | Values | Description | Values |
Meter Type | Three Phase Smart Prepaid Meter | Meter Constant | 1000imp/kWh , 1000 imp/kvarh |
Nominal Voltage Un | 3×220/380V ~ 3×240/415V | Operating Temperature Range | -25℃～+60℃ |
Rated Current | 1(10)A, 5(100)A | Extreme Operating Temperature Range | -40℃～+70℃ |
Nominal Frequency fn | 50Hz or 60 Hz, ± 2% | Relative Humidity | Up to 95% non condensing |
|
|
Rubber plug :2PCS Φ28 for cable input and output |
Φ8 plastic screws: 4PCS |
ST5*30mm Self-tapping screw:4pcs |
ST5*15mm Self-tapping screw(for meter bottom side):2pcs M5*8 screw(for meter top side):1pcs |
M4*16mm screw(for breaker):2pcs |
M5*18mm screw(for fuse base):2pcs for single phase box,4pcs for three phase box) |
ST5*16mm Self-tapping screw(for meter support ):2pcs |
Φ13mm plastic gasket:4pcs |
Φ13mm metal gasket :4pcs |
Lock of the transparent window |
Lock:of the box 1pcs& key:1pcs for 500pcs boxes |
Accessories for pole installation
|
Packing details | Box size | Containers | Quantity |
1pcs/carton | X-2301 Carton size:520*210*140mm | 20GP | 2057 |
40HQ | 4807 |
