The X-2302 IP54 IK10 SMC Fiberglass Three Phase Electric Prepaid Meter Box is a high-performance solution designed for reliable energy metering and protection. Made from durable poly fiberglass, this box offers UV resistance and V0 flame resistance, ensuring long-lasting durability in harsh outdoor conditions. Its robust IP54 waterproof rating and IK10 impact resistance make it ideal for protecting three-phase prepaid meters and smart meters. The box features a transparent window for easy meter reading and a small window for quick access to the circuit breaker. It is designed to prevent tampering with anti-tamper protection and offers flexible installation options, including wall-mounted and pole-mounted configurations. For added security, the box can be equipped with a lock and key based on project requirements. Whether used in residential, commercial, or industrial applications, this meter box ensures safe, efficient, and reliable performance in various environments. Its high mechanical strength makes it safer than traditional metal boxes, and it is perfect for areas without constant supervision. The X-2302 is the ideal choice for those seeking a secure, durable, and easy-to-install energy metering solution.
Made of UV-resistant poly fiberglass with V0 flame resistance, IP54 waterproofing, and IK10 impact protection. Built to resist harsh weather, physical damage, and unauthorized access. Optional lock adds extra security.
Works with 3-phase prepaid/smart meters. Track live energy use via Wi-Fi and the Tuya app. Control home devices remotely to save energy.
Generates easy-to-read daily/monthly/yearly reports using real-time data. Identifies high-energy devices and suggests ways to cut costs.
Large clear window for quick meter reading, small window for breaker access. Fits walls or poles. Holds meters, breakers, and fuses neatly.
| Parameter | Value |
|---|---|
| Model | X-2302 |

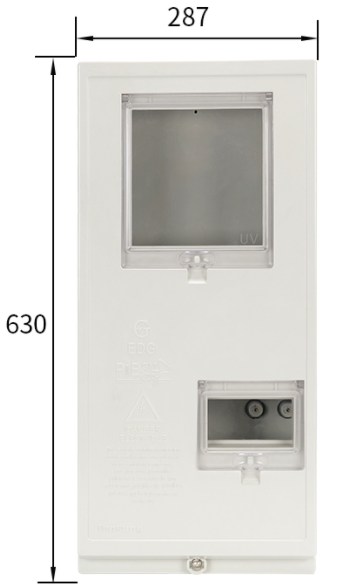

| Dimension | 139mm (Depth) x 287mm (Width) x 630mm (Height) |
| Weight | 3.65kg |
| Material of Top Cover | Reinforced fiberglass - SMC |
| Protection Degree | IP54 |
| Anti-UV | Yes |
| Flame Resistance | Yes |
| Anti-Tamper Protection | Seal or Lock |
| Temperature Range | -30°C to 80°C |
| Mounting Methods | Pole Mounted or Wall Mounted |
The X-2302 IP54 IK10 SMC Fiberglass Three Phase Electric Prepaid Meter Box is ideal for residential, commercial, and industrial applications. Its durable, waterproof design makes it perfect for outdoor installations in harsh environments. The box is suitable for protecting three-phase prepaid meters and smart meters in areas with varying weather conditions. With options for pole mounting and wall mounting, it can be installed in different settings, from residential homes to industrial plants. The box’s anti-tamper protection ensures safety and security, making it the ideal choice for energy management in both urban and remote locations.
Zhejiang Tianpu Sheng Electric Co., Ltd. is a leading manufacturer in China, specializing in advanced electric meter enclosures. We produce the IP54 IK10 SMC Fiberglass Three Phase Electric Prepaid Meter Box with high-quality materials for optimal performance. Our extensive experience in the industry ensures that every product meets stringent quality standards. Designed for durability and security, our meter boxes are perfect for residential, commercial, and industrial applications. Inquire today for more information and to avail of our reliable solutions!
 |  |
 |  |
Optional accessories (cost will be different based on the accessories)
Rubber plug :2PCS Φ44 for cables input and output |
Φ8 plastic screws: 4PCS |
ST5*25mm Self-tapping screw:4pcs |
ST5*15mm Self-tapping screw(for meter bottom side):2pcs M5*8 screw(for meter top side):1pcs |
M4*16mm screw(for breaker):2pcs |
M5*18mm screw(for fuse base):2pcs for single phase box,4pcs for three phase box) |
 ST5*16mm Self-tapping screw(for meter support ):2pcs |
Φ13mm metal gasket :4pcs |
Φ13mm metal gasket :4pcs |
Lock of the transparent window |
Lock:of the box 1pcs& key:1pcs for 500pcs boxes |
Accessories for pole installation
|
Packing details | Box size | Containers | Quantity |
1pcs/carton | X-2302 Carton size:640*295*150mm | 20GP | 1080 |
40HQ | 2430 |
